FPC LED

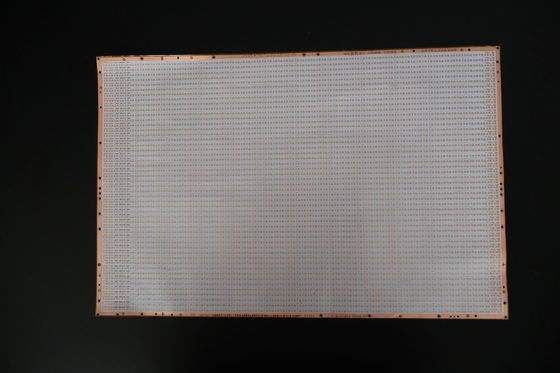

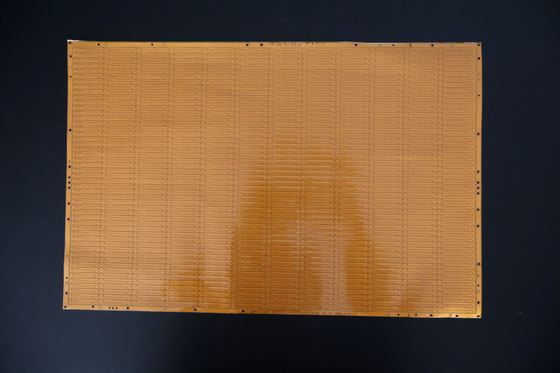

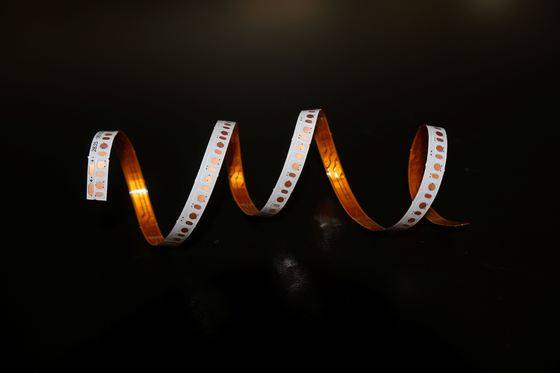

Created with Pixso. SMD 2835 LED Strip 56LEDs/PCS | 10x503mm 24V with Transistor - High Performance

SMD 2835 LED Strip 56LEDs/PCS | 10x503mm 24V with Transistor - High Performance

Nazwa marki: HONGQI
Numer modelu: HQ30156
MOQ: 500pcs
Cena £: Negocjowalne
Czas dostawy: Zbywalny
Warunki płatności: L/C, D/A, T/T.
Szczegółowe informacje
Miejsce pochodzenia:
Guangdong, Chiny
Orzecznictwo:
UL E477885 IATF16949 GB/T 16949
SMP:
wsparcie
Typ produktu:
Elastyczny obwód drukowany
Kolor maski lutowniczej:
Żółty, czarny, biały
Metoda marketingowa:
Sprzedaż bezpośrednia fabryczna
Dziurka min:
0,1 mm
Wodoodporny:
Tak
SMT i Dip:
wsparcie
Trwałość:
Długotrwałe
Sztywność mechaniczna:
Elastyczny
Szerokość:
5 mm
Kod statusu:
403
Ocena napięcia:
12 V
Technologia przetwarzania:
Folia elektrolityczna
Aplikacja:
Oświetlenie wewnętrzne i zewnętrzne
Liczba diod LED:
10
Szczegóły pakowania:
Pełne mocnych przypadków papierowych
Możliwość Supply:
100000 sztuk miesięcznie
Opis produktu

Technical Specifications and Customization Services for HQ046 LED Light Strip FPC

Abstract

Flexible Printed Circuits (FPCs) are pivotal components in advanced LED light strip systems, mandating stringent performance in flexibility, reliability, environmental resilience, and customization scalability. This specification document defines the technical parameters, performance benchmarks, and service protocols of the HQ046 LED light strip FPC—a double-layer flexible circuit board engineered for demanding lighting applications across industries. It comprehensively outlines the manufacturer’s customization capabilities, compliance with international standards, quality assurance frameworks, and end-to-end technical support, serving as an authoritative reference for engineers, procurement professionals, and technical decision-makers selecting LED light strip FPC solutions.

1. Product Overview of HQ0156 LED Light Strip FPC

The HQ046 is a high-performance FPC specifically developed for LED light strip integration, combining structural integrity, mechanical durability, and environmental adaptability. Its core specifications are summarized in the table below:
Parameter Specification
Product Model HQ30156
Product Name LED Light Strip FPC
Circuit Structure Double-layer circuit board
Surface Coating Double-sided black solder mask; black silk screen printing
Antioxidant Treatment OSP (Organic Solderability Preservative)
Core Performance Superior flexibility; excellent bending fatigue resistance; stable electrical conductivity
Design Standard Compliant with IPC-2221 general printed circuit board design specifications

2. Technical Specifications and Customization Capabilities

With 16 years of specialized experience in FPC R&D and manufacturing, we offer full-spectrum customization for LED light strip FPCs, spanning single-layer, double-layer, and multi-layer configurations. Key technical parameters and customizable options are detailed as follows:

2.1 Dimensional Parameters

  • Precision FPC: Maximum dimensions 240×500mm (limit specification: 250×500mm); no minimum size restriction, supporting micro-scale custom designs.
  • Roll-type FPC: Maximum width 240mm; maximum length 100 meters, optimized for high-volume continuous production.

2.2 Circuit Layer Configurations

Layer configuration is tailored to circuit complexity and functional requirements, with the following industry-proven options:
  • Single-layer FPC: Streamlined structure with cost-efficiency, suitable for low-complexity circuits in industrial controls, basic electronic instruments, and entry-level LED lighting systems.
  • Double-layer FPC: Dual copper foil layers with enhanced plated through-holes (PTH) for reliable interlayer connectivity, ideal for high-integration applications such as automotive lighting, smart device backlights, and mid-to-high-end LED light strips.
  • Multi-layer FPC: Customizable layer counts for ultra-high-complexity scenarios requiring dense wiring, multi-signal parallel transmission, and advanced functional integration.

2.3 Solder Mask Options and Application Scenarios

Solder mask selection is optimized for functional performance and aesthetic requirements:
  • Yellow Solder Mask: Universal solution for general-purpose applications (e.g., standard cable assemblies) offering balanced cost-effectiveness and process compatibility.
  • Black Solder Mask: Preferred for high-end lighting systems (automotive headlamps, LED displays, smartphone backlights) due to its superior light absorption, minimizing reflection and enhancing visual uniformity.
  • White Solder Mask: Equipped with high-reflectivity coating to maximize light utilization, suitable for professional lighting fixtures, medical aesthetic devices, and high-brightness LED displays.

2.4 Copper Foil Thickness Specifications

Copper foil thickness is customized based on current-carrying capacity, mechanical flexibility, and thermal management needs:
  • Precision FPC:
    • Single-layer: 18μm (0.5oz), 35μm (1oz)
    • Double-layer: 12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
  • Standard FPC:
    • Single-layer: 18μm, 25μm, 35μm (1oz), 50μm
    • Double-layer: 18-25μm, 25-25μm, 35-35μm, 35-70μm

2.5 Minimum Line Width/Spacing

As a critical indicator of FPC precision, the minimum line width and spacing are controlled to 3mil (0.076mm) as the recommended practical limit. This specification balances manufacturing yield, cost-effectiveness, and long-term reliability—finer dimensions can be achieved upon request but may increase production complexity and defect rates.

3. Core Performance and Quality Assurance

3.1 Flexibility and Bending Durability

The HQ046 FPC delivers industry-leading flexibility and bending resistance, validated through rigorous quality control procedures:
  • Each batch of base materials undergoes testing with professional bending fatigue testers to ensure consistent mechanical performance.
  • All finished products pass a minimum of 10,000 bending cycles (per IPC test standards) prior to mass production, guaranteeing resistance to fatigue failure in dynamic applications (foldable lighting, curved surface installations, and repeated motion scenarios).

3.2 Manufacturing Capabilities and Facilities

Our production facility is equipped with state-of-the-art equipment sourced from Germany, Japan, and Taiwan, enabling high-precision, large-scale FPC manufacturing:
  • Factory footprint: Approximately 20,000 square meters, featuring cleanroom production environments.
  • Workforce: Over 800 employees, including 50 senior technical specialists with extensive FPC design and manufacturing expertise.
  • Production capacity: Dual-line operation supporting both expedited sample fabrication and high-volume batch production, with a monthly output of over 5 million square meters.

4. Customization Service Protocol

To address diverse customer requirements, we implement a standardized, customer-centric customization service process covering the entire FPC value chain:

4.1 Technical Consultation and Solution Design

Leveraging 16 years of industry expertise, our engineering team provides:
  • Tailored solution design aligned with specific application environments (temperature, humidity, mechanical stress).
  • Drawing optimization for enhanced manufacturability (DFM) and performance improvement.
  • New product development support, from concept validation to prototype testing.
  • Professional guidance on material selection, layer configuration, and parameter optimization.

4.2 Quotation and Cost Optimization

We offer transparent, competitive pricing for both sample and bulk orders, with cost optimization achieved through:
  • Standardized production processes to reduce variability and waste.
  • Strategic sourcing of high-quality raw materials with long-term supplier partnerships.
  • Efficient production scheduling and process automation to lower labor costs.

4.3 Integrated Design and Manufacturing

Our one-stop services cover the full FPC production lifecycle:
  • Base substrate fabrication with strict material inspection and validation.
  • Precision circuit routing and schematic design compliant with IPC-2221 standards.
  • Custom mold development for specialized form factors and mounting requirements.
  • SMT (Surface Mount Technology) and through-hole assembly with high-precision alignment (±0.02mm tolerance).
  • Steel mesh fabrication tailored to circuit design for optimal soldering quality.

4.4 Sample Fabrication and Lead Times

A dedicated expedited production line is allocated for sample manufacturing:
  • Lead time: 5-7 days for double-layer FPC samples; 3-5 days for single-layer samples.
  • Sample validation: Each sample undergoes electrical continuity testing, bending resistance testing, and solderability verification before delivery.

5. Certifications and Important Notes

  • Certifications: The product line holds ISO 9001 quality management system certification, UL 94 flame-retardant certification, and RoHS compliance. Detailed certification documents are available upon request.
  • Environmental Compliance: All materials meet RoHS and REACH requirements, ensuring no restricted substances are used.
  • Image Disclaimer: Product images on official platforms are taken under standard conditions. Minor color variations may occur due to lighting, shooting angles, or display resolution—actual products shall prevail.
  • Continuous Improvement: Our FPC product portfolio is regularly updated based on emerging technologies and industry standards, with annual technical upgrades to enhance performance and expand application scope.
